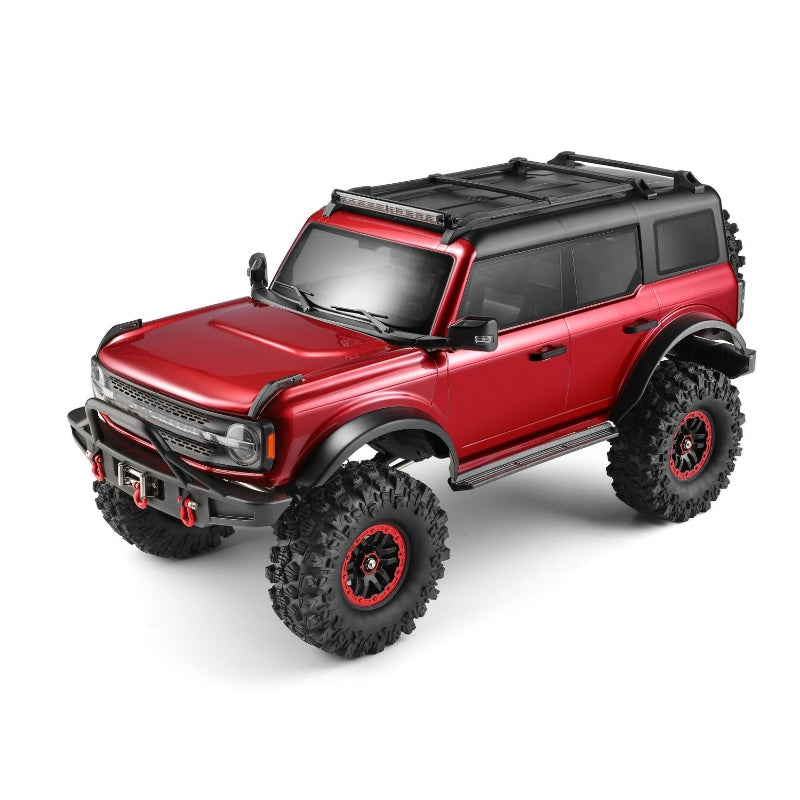

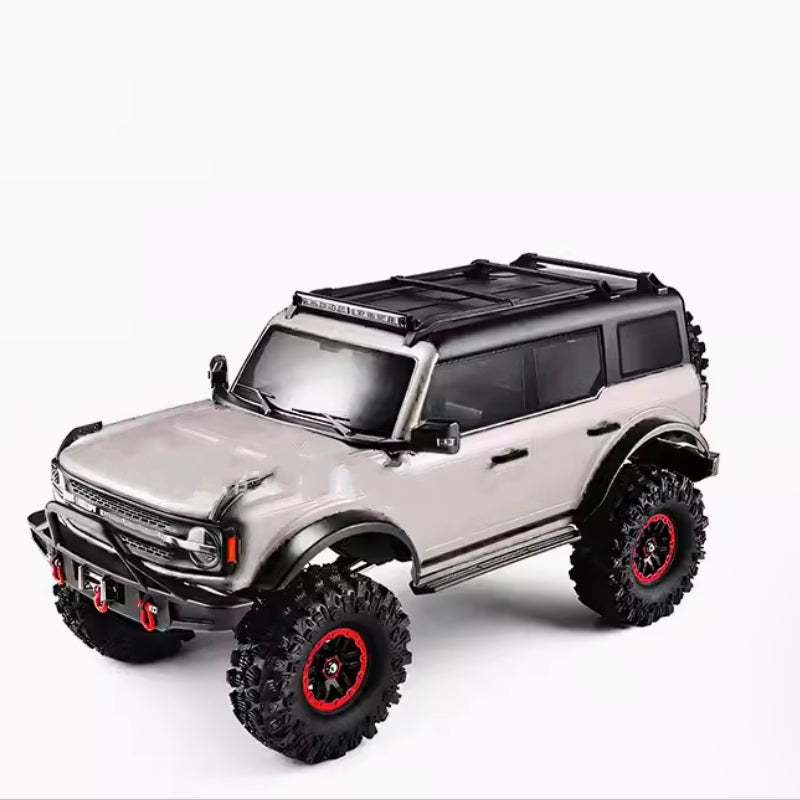

Product name: WLTOYS 104020 RC Car

Product color: Red, gray

Product size: 568*250*272mm

Naked car weight: 3875.8g

Color box size: 57.5*26*28cm

Usage time: About 45 minutes

Speed: 3km/ H-11km /h

Charging time: about 5h

Remote control mode: 2.4Ghz

Remote control distance: about 100m

Remote control battery: 4*7#AAA battery (not included)

Drive motor: 550 motor

Charging device: 7.4V 2000mAh USB charging cable

Battery details: 7.4V 3000mAh 18650 lithium battery

Wheelbase: 313mm

Distance from ground: 80mm

Suspension: front and rear four-link suspension

WLTOYS 104020 RC Car Product Configuration:

Finished car

Remote control unit

Specification

USB charging cable

Zinc alloy cross sleeve

WLTOYS 104020 RC Car Function Description:

1. Boasting two-speed control for seamless forward, backward, left, and right turns, along with a brake system,  this model achieves a thrilling maximum speed of 11KM/H and a leisurely minimum speed of 3KM/H.  Its full simulation  structure design immerses you in a genuine driving experience.

2. Equipped with a high-capacity lithium battery and motor, this vehicle effortlessly handles both high and low speed adjustments,  ensuring a smooth and responsive driving performance.

3. Featuring an innovative door and bridge design,  the chassis boasts increased ground clearance for superior passability.  Coupled with rugged rubber tires,  it ensures exceptional grip and stability on various terrains.

4. Accentuated by cool lighting effects, this car offers a unique visual spectacle,  transforming your night races into a dazzling display of speed and style.

5. Incorporating ball bearings and an alloy gear differential structure,  it minimizes energy loss during transmission and enhances the overall climbing capability,  providing a more exhilarating driving experience.

6. The upgraded version now comes with an optional remote-controlled electric winch function, if you want, you can buy an upgraded version.

WLTOYS 104020 1/10 4WD RC Car Chassis Structure:

1. Equipped with 550 motor, this motor control mode is simple, only two input lines, by adjusting the position of the line can realize the positive and negative rotation of the motor, while the increase of voltage will also bring about an increase in speed and torque. In addition, the brush motor technology is mature, and players do not have to worry about the problem of easy damage to the motor in the case of conventional operation.

2.Equipped with 7.4V 3000mAh lithium battery, the energy density is higher than the traditional battery, in the same volume size comparison, lithium battery can store more energy, provide longer life for remote control car, is one of the most cost-effective batteries.

The updated version of the WLTOYS 124020 remote control car is equipped with an additional electronic winch, which is designed to significantly improve the remote control car's off-road ability and self-rescue ability, and players play this car on the difficult bumpy track, testing the player's resilience when in danger.
