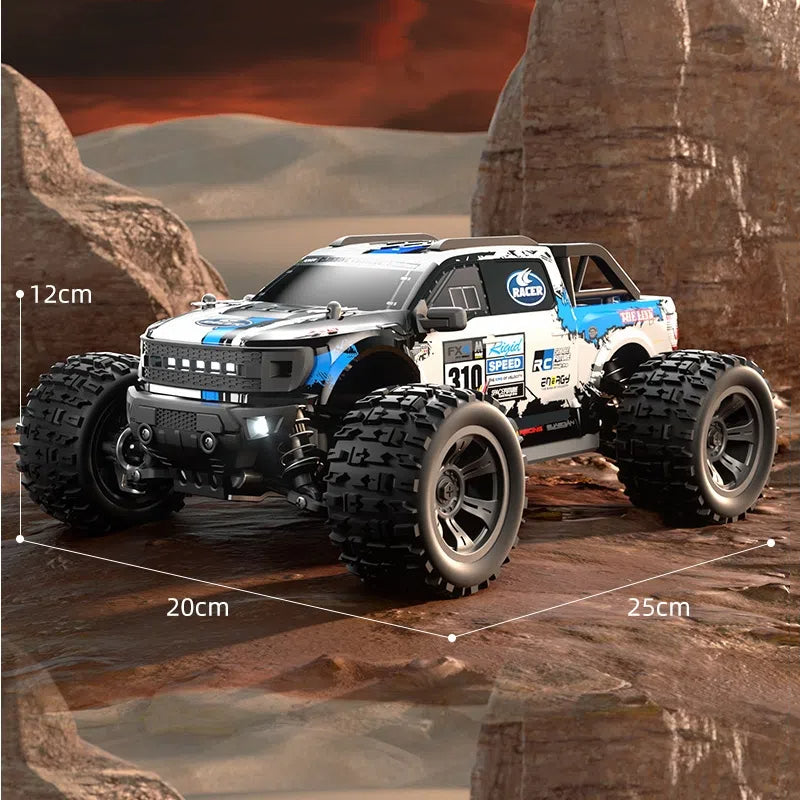

Product name: SCY 18102 1/18 RC Car

Product speed :28km/h

Product Battery: 7.4V 1500mAH lithium-ion battery (T plug)

Remote control battery: 3* "AA(to be purchased separately)

Charging :USB cable charger

Remote control time :35-40 minutes (continuous running at full speed)

Charging time :180-210 (USB balance charge)

Remote control distance :≥80

Steering gear :5 lines,17g servo

Headlight configuration :LED front light white light, central white light

Differential structure: Metal differential (planetary gear)

Motor :RC380 high speed carbon brush strong magnetic (magnetic protection + heat sink)

Electric modulation/reception :25A 2S integrated control (anti-splash)

Remote control category: Full proportional synchronous control system (gun control)

Product frequency :2.4GHz(support multi-vehicle competition)

Product color: Floral blue/red

Product material: Hardware/electronic/plastic

Wheel wheelbase parameters: wheelbase 165mm, wheel base 155mm, wheel diameter :67mm

Weight (including battery) :0.75kg

Remote control specifications :12.6*8.2*18.5cm

Product specification :25*19*11cm

SCY 18102 RC Car product configuration:

Finished car

Remote control unit

Instruction manual in Chinese and English

Lithium battery

USB charger

Shock absorbing adjusting buckle

Bolt of metal

Phillips screwdriver

SCY 18102 RC Car product features:

1. Charge protection, constant current and constant voltage balanced charging, the protection function of battery overcharge and overcurrent.

2. Motor anti-jamming protection, overload work, the motor stops working.

3. High temperature protection, when the working temperature is higher than the set condition, the drive control circuit stops working, and the temperature drops to the safe value after the resumption of work.

4. Power down voltage power off function, the battery is lower than 6.3-6.4V, automatic power off, to prevent battery overdischarge and damage.

SCY 18102 RC Car internal accessories description:

This car is equipped with front and rear metal differential, with metal drive shaft, differential can drive the wheel to achieve different speed movement mechanism.

SCY 18102 RC Car is equipped with chassis aluminum reinforcement plates, which can be removed to replace the drive shaft, and can withstand the various impacts of climbing the car.

SCY 18102 RC Car uses a brushed motor for high speeds, instant acceleration and deceleration braking, and a top speed of 40km/h. In addition, it is also equipped with metal heat sink, which extends the life of remote control car motor. The use of removable rear wave box, easy to remove and replace the motor.

SCY 18102 RC Car body with four independent shock absorber, can effectively ease the bumpy road potholes, removable spring gaskets, adjust the shock absorber soft and hard.

SCY 18102 RC Car adopts 17G5-wire servo, with low voltage power off, temperature control protection function.

SCY 18102 RC Car tires are designed with anti-skid and wear-resistant tires, soft tread, strong grip, and screw lock between the nylon part of the tire and the wheel skin.
