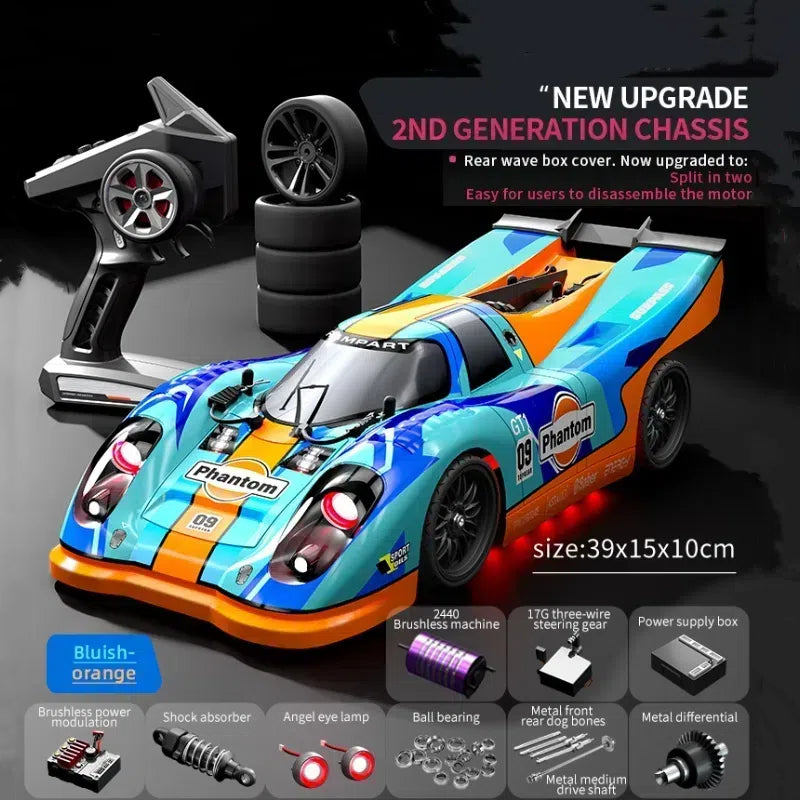

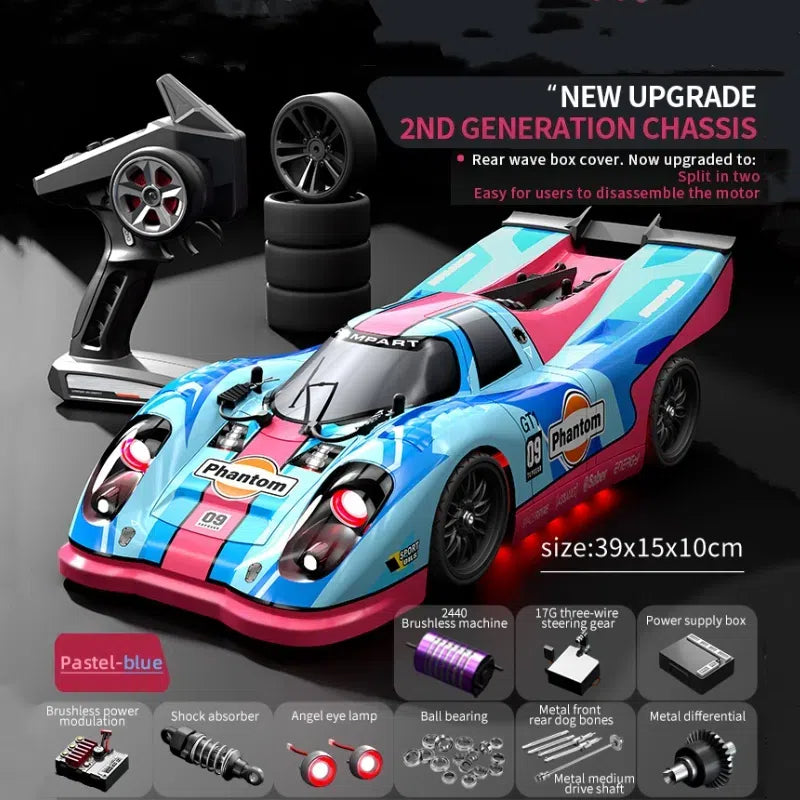

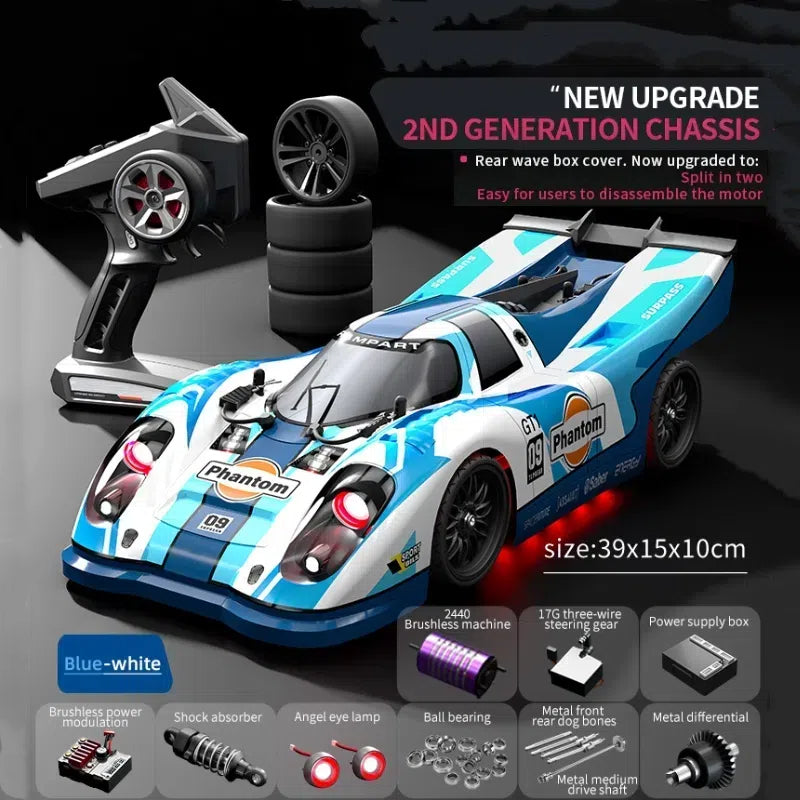

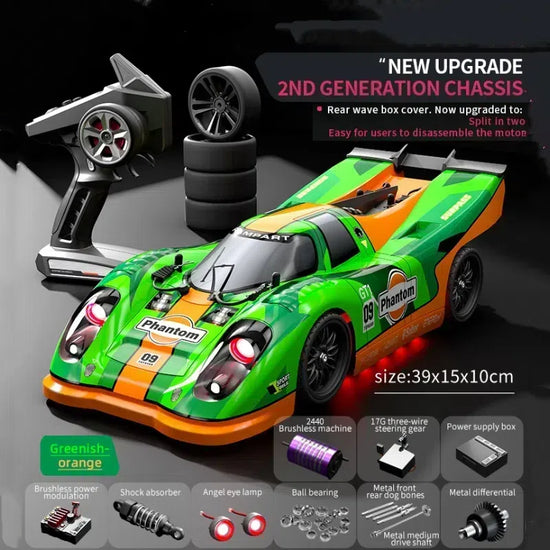

JJRC C8806 1/18 4WD 2.4ghz RC Car

Product name: JJRC C8806 RC Car

Product ratio: 1/18

Product color: Blue white, blue pink, green orange, blue orange

Product size: 36*15.5*10.5cm

Remote control size: 13*7.5*21cm

Control time: 15-18min

Charger: USB charger

Remote control distance: about 80m.

Motor: 2440 4000kv brushless motor

Servo: 3-wire 17g digital servo

Differential structure: front and rear nylon gear planetary differential

Wheelbase: 180mm

Wheel base: 127mm

Wheel diameter: 50mm

Remote control battery: AA*3 (not included)

Charging time: 3-3.5h

Remote control frequency: 2.4Ghz

ESC: 35A 2S 2-in-1 ESC (waterproof)

Speed: 52km/h

Headlight configuration: seven mode demon angel eye headlight, taillight

Protection function: overcharge protection, locked-rotor protection, high temperature protection, low voltage protection

JJRC C8806 protection function description:

1. Using simulation structure design, with real car control feeling, to achieve full scale stepless transmission, high-speed driving, rapid acceleration, deceleration, braking, reversing, left, right turn, drift.

2. Adopt four-wheel drive mode, install front and rear vertical spring shock absorption, double fork arm independent hanging system.

3. With super battery power 7.4V, 18650-1500mAhli-ion battery, discharge rate 15C(T plug.

4. The whole car adopts 16 ball bearings, and is also equipped with metal second floor, metal front and rear arm code, metal drive shaft, and high toughness explosion-proof PVC car shell.

5. Two electrical ports are reserved on the power board, and players can upgrade the vehicle by themselves.

6. The car shell adopts a full enveloping structure, which makes it better to play a buffer role when the car is frontal impact and avoid the wheel parts being damaged by strong impact.

Product configuration of JJRC C8806:

Remote control car *1

Remote control *1

Instruction manual in Chinese and English*1

Lithium battery *1

USB cable *1

Drift wheels *1

Shock absorbing adjustment buckle *1

Metal latch *1

Small Phillips screwdriver *1

Notes for JJRC C8806:

1. Charge protection, constant current and constant voltage balanced charging, the protection function of battery overcharge and overcurrent.

2. Motor anti-jamming protection, overload work, the motor stops working.

3. High temperature protection, when the working temperature is higher than the set condition, drive control
The circuit stops working and resumes working after the temperature drops to a safe value

4. Power down voltage power off function, the battery is lower than 6.3-6.4V, automatic power off, to prevent battery overdischarge and damage.

JJRC C8806 shell is made of PVC material, and the design adopts the aerodynamic principle to reduce the wind resistance while increasing the body pressure during walking, making the body more stable and faster.

JJRC C8806 is equipped with gorgeous angel eye headlights and has six adjustable lighting modes. They're running demon eyes + Angel eyes, steady angel eyes, steady demon angel eyes, steady demon eyes, steady demon eyes, breathing demon angel eyes.

The rear lights of the JJRC C8806 feature a red light design.

The front and rear differential of the JJRC C8806 has been upgraded to a metal material, and the differential can move the left and right driving wheels at different speeds.

JJRC C8806 through the drift wheel, reduce friction to achieve no deceleration tow effect.

JJRC C8806 In terms of shock absorption, the body uses four independent shock absorbers to effectively alleviate bumps caused by small potholes on the road. This spring shock absorber uses a removable spring gasket to adjust the shock absorber stiffness.

JJRC C8806 adopts low lying shape design with ground clearance of about 1cm. The chassis is more stable at high speed.

JJRC C8806 adopts upgrade 2.0 chassis, players can DIY upgrade according to their own needs, vehicle electric regulation for the brand independent research and development of integrated control, with low voltage power off, temperature control protection functions.
