JJRC C8810 1/18 4WD 2.4ghz RC Car

Product name: JJRC C8810 RC Car

Product color: Black A, orange B

Product ratio: 1/18

Material: Hardware, electronic components, plastic

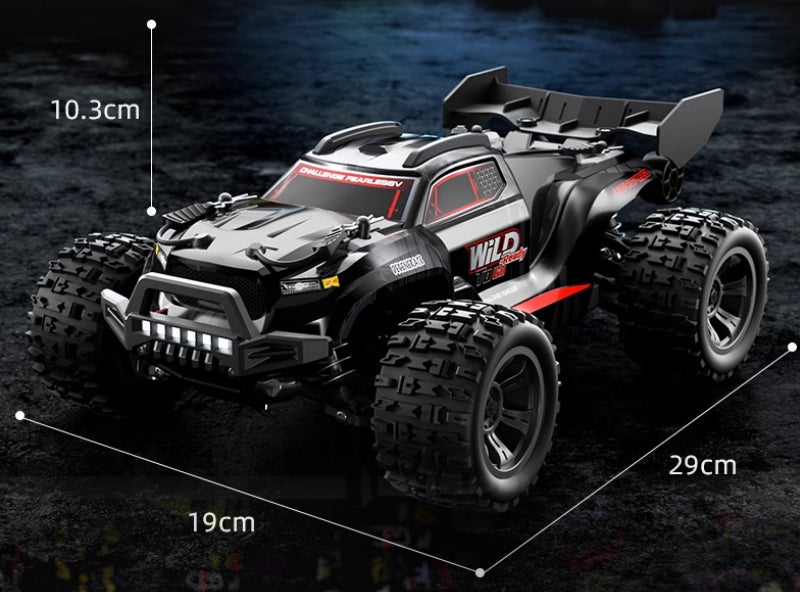

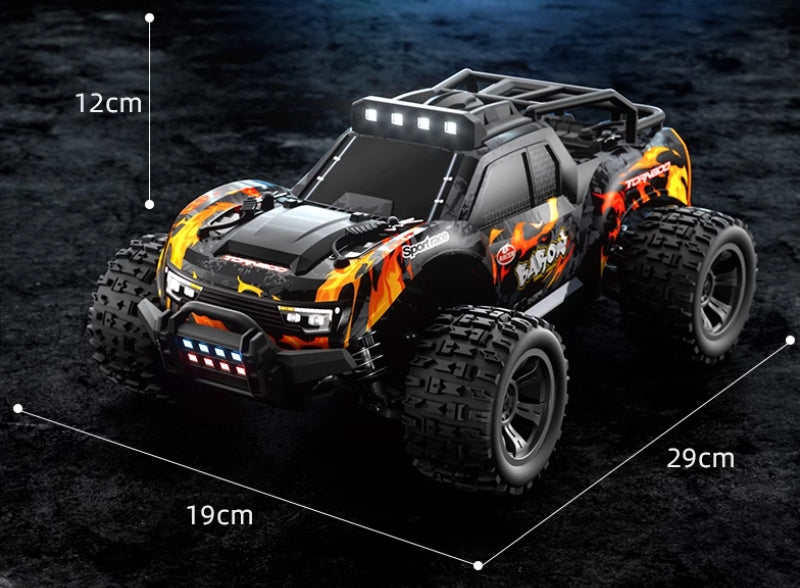

Product size: Black 29*19*10.3cm, orange 29*19*12cm

Remote control car specifications: 12.6*8.2*18.5cm

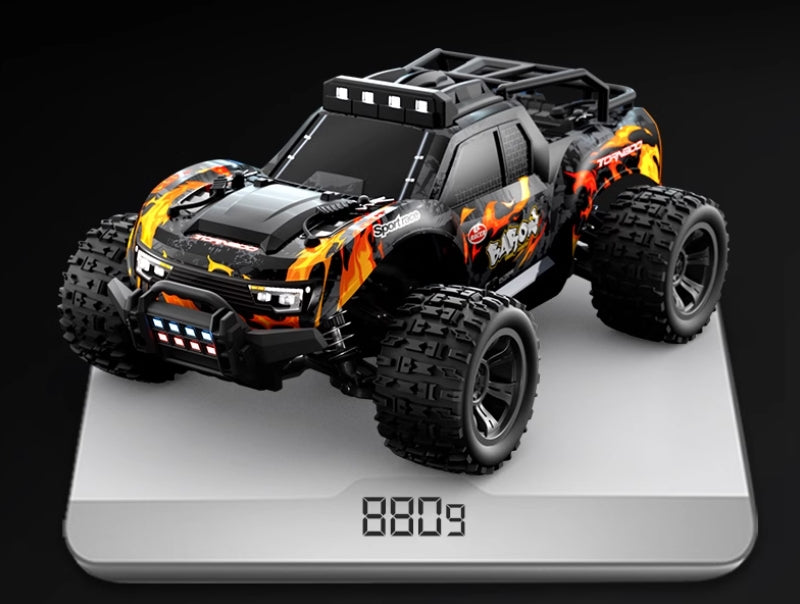

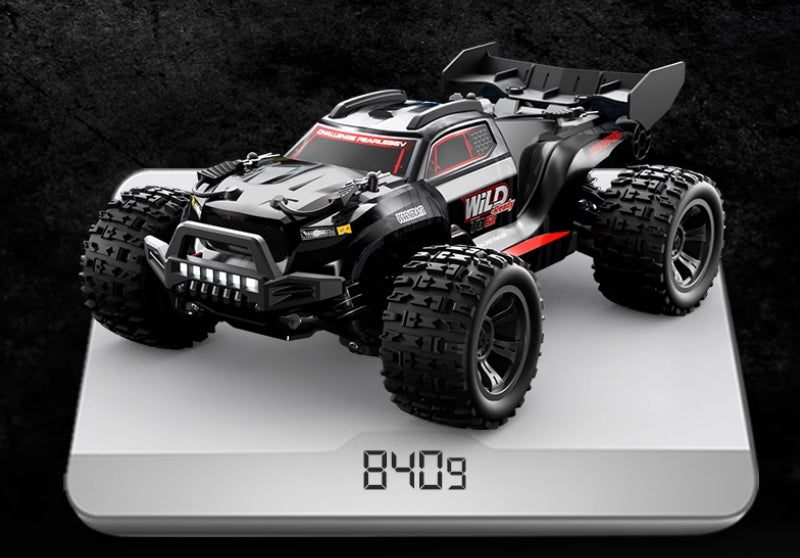

Body weight: black 840g, orange 880g

Remote control weight: 190g

Headlight configuration:

The black A model has white LED front lighting.

The orange B has LED front warning lights and white roof lights.

Differential structure: metal differential

Motor: RC380 high speed carbon brush strong magnetic motor

ESC: 25A 2S integrated control ESC

Body battery: 7.4V 1500mAH lithium battery (T plug)

Servo: 5-wire 17g servo

Remote control battery: AA*3 (players need to buy)

Charger: USB charging cable

Frequency: 2.4Ghz

Remote control distance: less than or equal to 80m

Battery life: 10-30min (depending on speed)

Charging time: 3-3.5h

Wheelbase: 165mm

Wheel base: 155mm

Wheel diameter: 67mm

Speed: 40km/h

Protection function: charging protection, stuck protection, high temperature protection,

low voltage protection

JJRC C8810 protection function description:

1. Charging protection. It has the function of constant current and constant voltage balanced charging, protecting the battery from overcharge and overcurrent.

2. Motor anti-jamming protection. When the motor is overloaded, the motor will stop working immediately.

3. High temperature protection. When the operating temperature is higher than the set condition, the drive control circuit stops working, and the work resumes after the temperature drops to a safe value.

4. Power down voltage power off function, the battery is lower than 6.3-6.4V, automatic power off, to prevent battery overdischarge and damage.

JJRC C8810 related products introduction:

1. Using simulation structure design, it can achieve full scale stepless speed change, high-speed driving, rapid acceleration and deceleration, braking, reversing, left turn, right turn and other operations.

2. Suitable for flat land, sandy land, mud land, grassland and other complex terrain.

3. Adopt four-wheel drive, install front and rear vertical spring shock absorption and double fork arm independent suspension system.

4. Regarding the transmission shaft structure, the front wheel cross ball head universal joint transmission shaft and the rear wheel split dog bone transmission shaft are adopted.

5. The whole car uses 15 ball bearings, which can help the vehicle run smoothly.

6. A variety of metal parts are used, such as metal underbody reinforcement plate, metal differential, metal gear, metal steering knuckle, metal front and rear arm code, metal drive shaft.

7. The car shell adopts high toughness explosion-proof PVC car shell, and is equipped with anti-loss silicone buckle.

Product configuration of JJRC C8810:

1* whole vehicle

1* remote control

1* Instruction manual in Chinese and English

1* lithium battery

1*USB charger

1* shock absorbing adjusting buckle

1* metal bolt

1* anti-loss silicone buckle

1* Phillips screwdriver

JJRC C8810 RC Car adopts front and rear metal differential, with metal rotating shaft, four-wheel drive linkage, more powerful, can make the player more natural and smooth in every turn.

JJRC C8810 RC Car is equipped with a professional head-up wheel, which can prevent the start of too much power to cause rollouts, and can better adjust the stability of the body when landing on the slope.

About the lighting design of JJRC C8810 RC Car:

Model A features 6 high-brightness LED front headlights.

Model B features 12 high-brightness LED front headlights.

JJRC C8810 RC Car uses a strong magnetic carbon brush motor, which can achieve high-speed driving, instant rapid acceleration and deceleration braking, and a maximum speed of 40km/h.

JJRC C8810 RC Car is equipped with independent spring shock absorbers. The body adopts four independent shock absorbers, which can effectively alleviate the bumps of small potholes on the road, making the driving more stable.

JJRC C8810 RC Car uses anti-slip and wear-resistant tires, which have soft skin, deep tread, strong grip and good wear resistance, suitable for a variety of road conditions.

JJRC C8810 RC Car is equipped with aluminum chassis reinforcement to withstand various impacts when the remote control car climbs, and this all-wrapped transmission system helps the vehicle achieve a smooth operation mode without fear of sand and gravel entry.

The aluminum alloy sheet at the bottom of the car can be disassembled to replace the drive shaft, and the operation is simple, fast and convenient.
