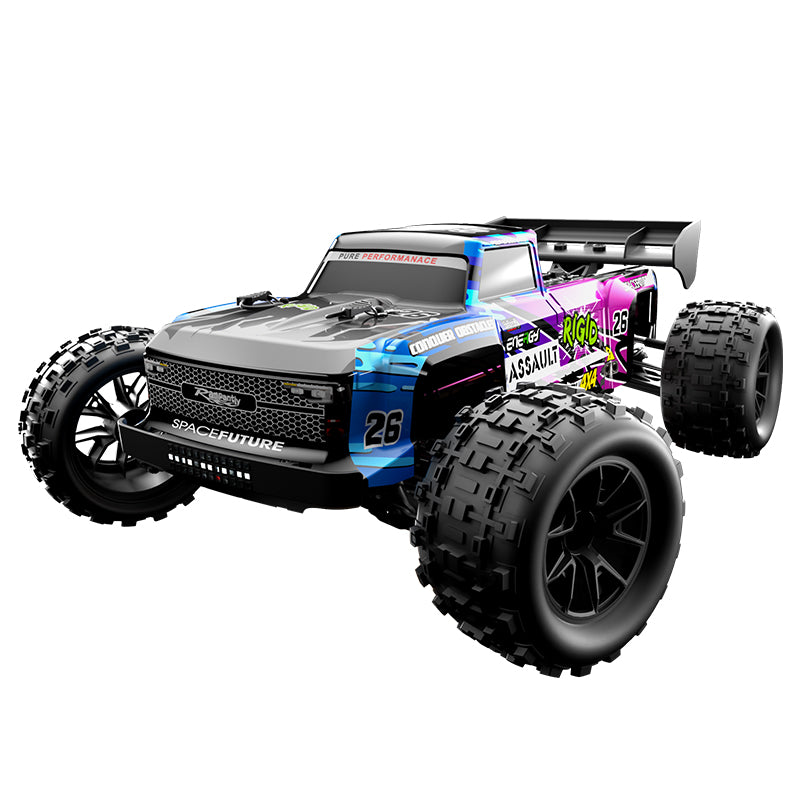

JJRC C8803 1/12 4WD 2.4ghz RC Car

Product name: JJRC C8803 RC Car

Product ratio: 1/12

Product color: Purple

Product size: 34*20.5*14cm

Drive system: 4WD

Driving time: about 10min

Charging time: about 2.5h

Remote control type: full proportional synchronous control system

Remote control distance: greater than or equal to 100m

Remote signal: 2.4Ghz

Body battery: 7.4V 1500mAh

Remote control battery: AA*4 (batteries need to be purchased separately)

JJRC C8803 protection function description:

1. With high-precision body structure and alloy arm code design, it not only enhances the structural strength of the vehicle, but also improves the overall performance.

2. Adjustable servo is used to ensure that the steering gear is not damaged during intense driving.

3. The rear axle adopts negative inclination Angle design, which can make the tire grip pressure hit the most average when turning.

Product configuration of JJRC C8803:

Remote control car *1

Remote control *1

Instruction manual in Chinese and English*1

Lithium battery *1

USB cable *1

JJRC C8803 adopts 2847 brushless motor in power, and adopts powder alloy gear with higher strength and wear resistance than plastic gear, and the durability of the motor has been significantly improved.

The ESC of the JJRC C8803 has three braking modes that can be adjusted on demand and memorized. Red. Braking force is 60% normal. Green, braking force medium 75%. When the traffic light is on, the braking effect is best 100%

JJRC C8803 differential was upgraded to alloy. Alloy differential with metal rotating shaft, to achieve four-wheel drive linkage, strong power so that you in every turn more natural smooth and stable.

JJRC C8803 adopts the design of oil pressure hinge shock absorber for shock absorption. The uniform and stable damping of the shock absorber can increase the grip of the tire as the vehicle passes through the uneven road surface. When the high-speed car is driving, it can effectively reduce the vibration and make the driving smooth.

JJRC C8803 base plate thickness of 2.5mm, made of aluminum alloy 6061 material (6061 alloy for aluminum, magnesium, silicon alloy, is a heat treatment type of corrosion resistance alloy). The bottom plate of this material has the characteristics of high density, wear resistance, high temperature resistance, high thermal conductivity and so on.

JJRC C8803 features a separate remote control with a separate 7-channel light-controlled receiver. Independent development of independent electric regulation, with low-voltage protection of three brake modes. Install independent steering gear, can upgrade high torque short body steering gear.

The holes of the JJRC C8803's front and rear metal shock mounts can be adjusted up and down to improve the Angle.
