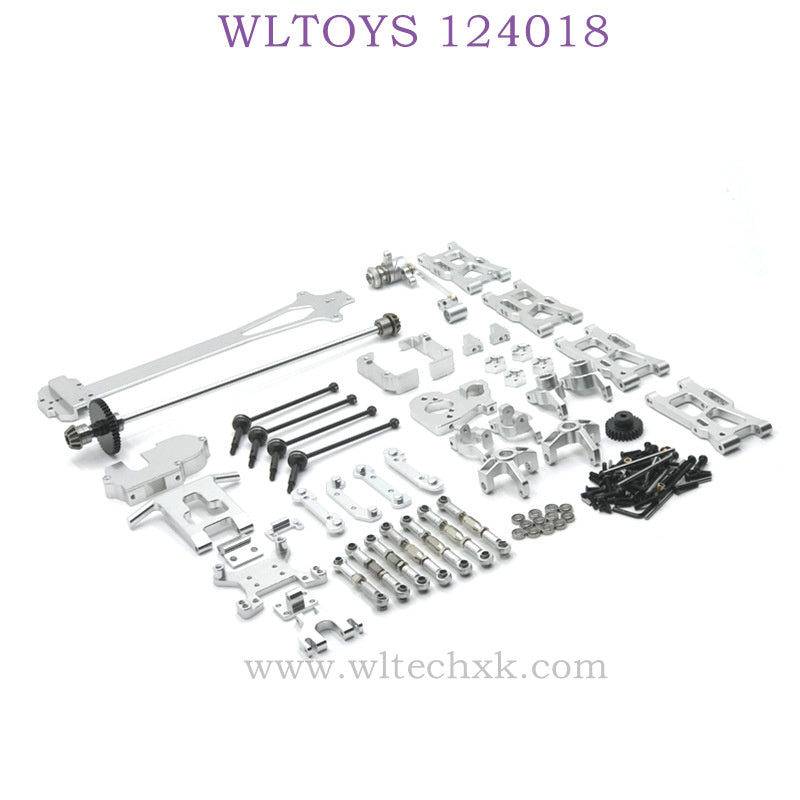

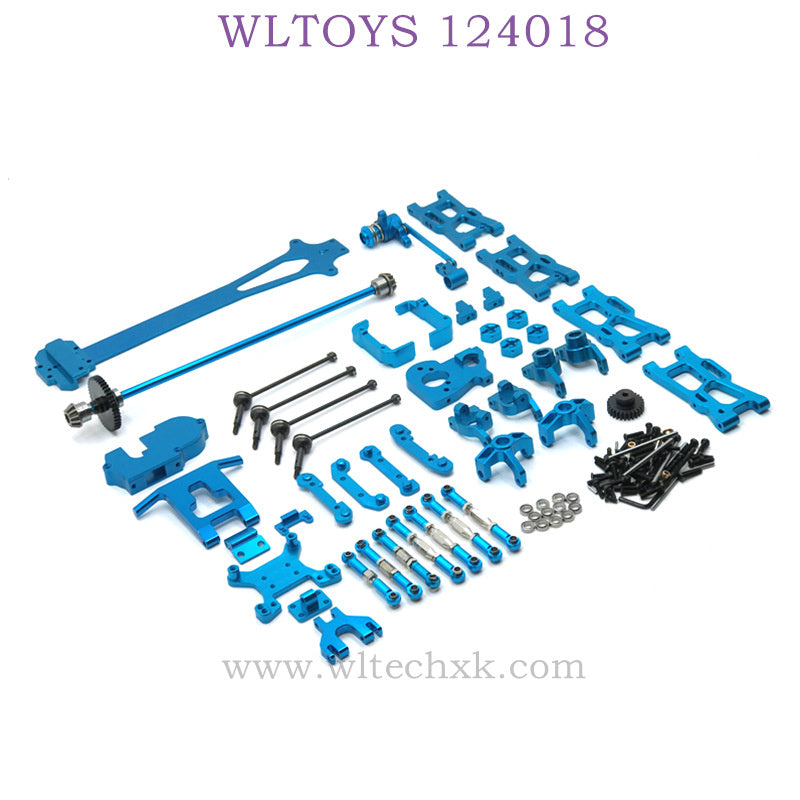

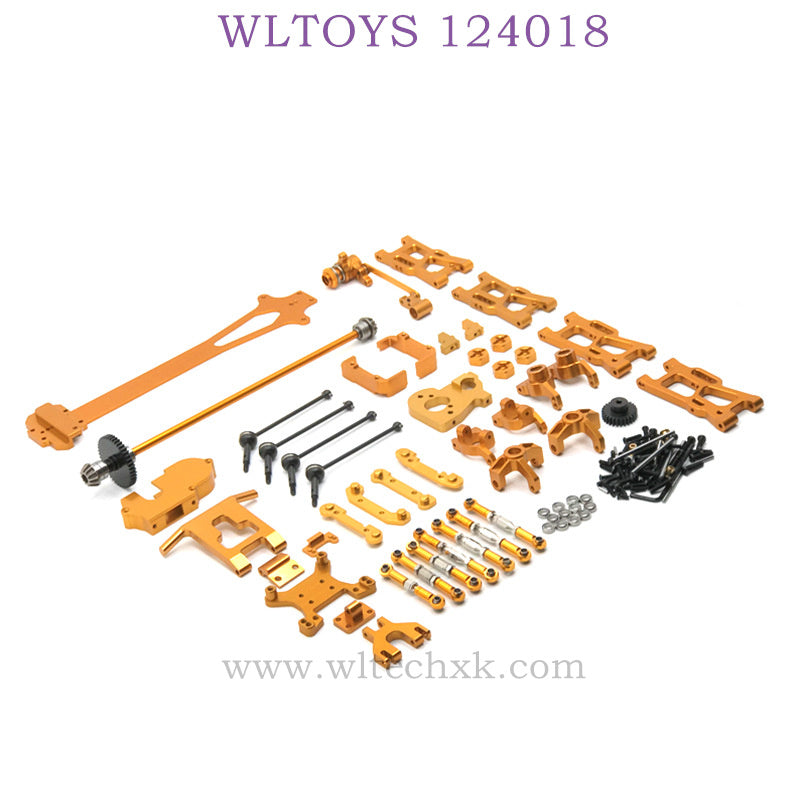

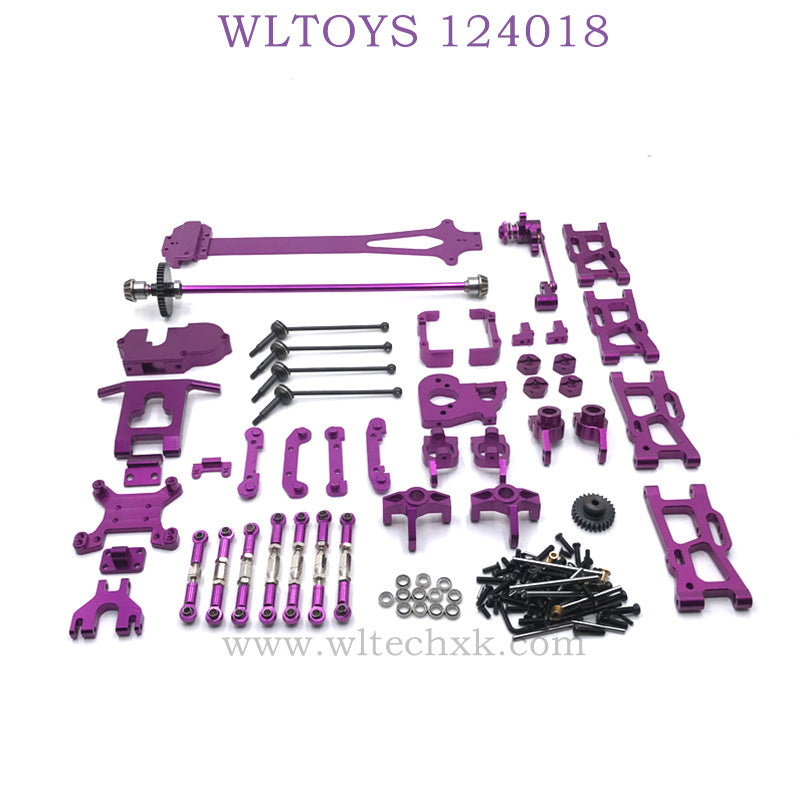

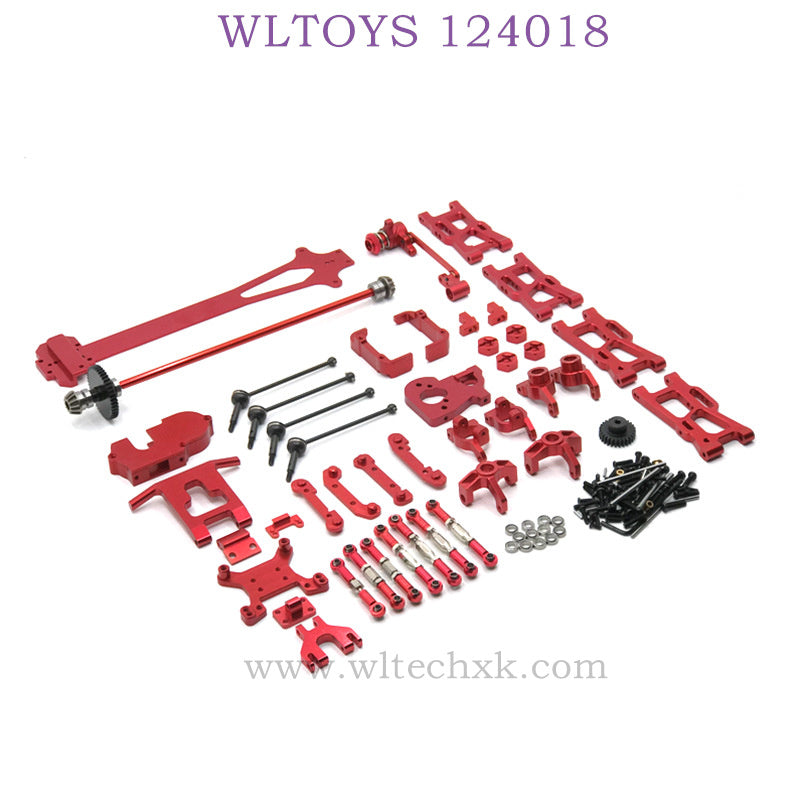

Name: WLTOYS 124018 RC Car Upgrade parts Metal Parts List

Suitable model: WLTOYS 124018 RC Car

Quantity: 1set

Color: Blue, red, gold, purple, silver

Weight: 434g

Upgrade Part of WLTOYS 124018 RC Car Metal Parts List includes parts and dimensions:

Second floor *1 206mm*50mm

Transmission assembly *1 (including 7*11*3 bearing *5, central drive shaft *1, 44T reduction teeth *1, 12T umbrella teeth *2) total length 216mm

Steering assembly *1 set

Gear dust cover *1 set 62.5*10.5*30mm

Front and rear general CVD*4 sets with a total length of 89mm

Battery holder *1 set

Steering gear fixed seat *1 set 16.5mm*13mm*5mm

Swing arm stiffener *1 set

Motor base *1 set

12mm hex connector *1 set

Front swing arm *1 to 62mm*32mm*7mm

Rear swing arm *1 for 68mm*34mm*7mm

Front bumper *1 set 64.5mm*43mm*10.5mm

Front shock absorber frame *1 set 42mm*39mm*14mm

Tie rod *1 set of 4 longest: length 58-68mm hole distance 55-65mm 2: length 48-58mm hole distance 45-55mm Steering gear tie rod: length 42-52mm hole distance 40-50mm

4*7*2 bearing *12

Motor teeth *1 27T

C-type seat *1 pair 30mm*18.5mm*17mm

Steering cup *1 for 32mm*25mm*18mm

Rear wheel cup *1 pair 31mm*16mm*22mm

WLTOYS 124018 1/12 Electric 4WD RC Racing car product features:

1. The body is made of high-strength aluminum alloy, which has strong stability and can improve the durability of the vehicle.

2. Equipped with a high-efficiency 550 strong magnetic motor, it not only makes the vehicle faster, but also improves the efficiency of the vehicle.

3. The whole car adopts zinc alloy gear system, which has precise bite, strong wear resistance and low loss.

4. Adopt advanced hardware oil pressure shock absorber system, with shock absorber, to maximize the shock absorber performance.
